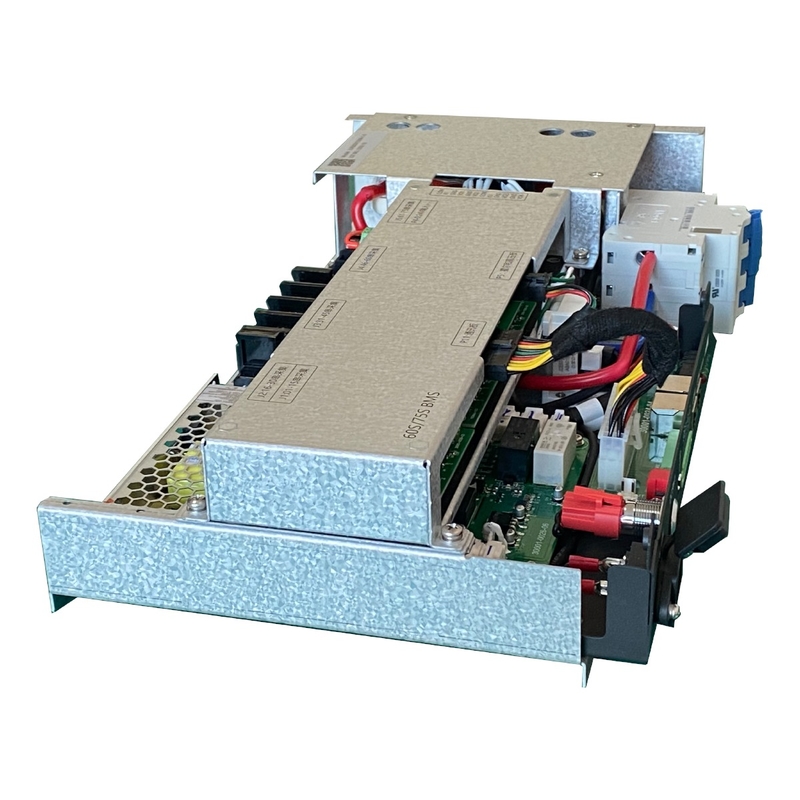

192V 50A Lithium Battery BMS for Lifepo4 NMC LTO Energy Storage

Name: 192V 50A Lithium Battery BMS for Lifepo4 NMC LTO Energy Storage
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S60S50A
Price: 528.00 USD
Availability: InStock

Thông tin chi tiết sản phẩm

Nguồn gốc: Hunan, Trung Quốc

Hàng hiệu: GCE/OEM/ODM

Chứng nhận: CE/RoHS/MSDS

Số mô hình: RBMS07S60S50A

Điều khoản thanh toán & vận chuyển

Số lượng đặt hàng tối thiểu: 2

Giá bán: $500-556

Nhận giá tốt nhất

Thông tin chi tiết sản phẩm

Mô tả Sản phẩm

Làm nổi bật:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                192V 50A Lithium Battery BMS, Lifepo4 NMC LTO BMS, Energy Storage Battery Management System


Điện áp:	192V	Hiện hành:	50A
Kích thước:	410232128mm	Cân bằng hiện tại:	100mA ± 10mA
Lấy mẫu nhiệt độ:	12 Nhiệt độ pin (4*3) trong thập niên 60	Độ chính xác nhiệt độ:	±2℃
Độ chính xác điện áp:	Một tế bào ± 20mV	bảo vệ ngắn mạch:	7,5KA 20ms
Xếp hạng hiện tại:	50A (100A tùy chọn)	Tải tối đa:	Hệ thống 50A thoáng qua: 70a/10s State State: 100A Trạng thái tạm thời: 150A/10S
Tiêu thụ năng lượng:	≤10w	Chịu được điện áp:	1800VDC 1MA 1 phút
Nhiệt độ hoạt động:	Sạc: －10 ～ 75 ℃ Xả: -20 đến 75 ℃ Lưu trữ: -40 đến +75 ℃	Hoạt động độ ẩm:	<90 RH(40℃±2℃)
Chế độ giao tiếp:	RS485/CÓ THỂ/LAN/Bluetooth

Điện áp:	192V
Hiện hành:	50A
Kích thước:	410232128mm
Cân bằng hiện tại:	100mA ± 10mA
Lấy mẫu nhiệt độ:	12 Nhiệt độ pin (4*3) trong thập niên 60
Độ chính xác nhiệt độ:	±2℃
Độ chính xác điện áp:	Một tế bào ± 20mV
bảo vệ ngắn mạch:	7,5KA 20ms
Xếp hạng hiện tại:	50A (100A tùy chọn)
Tải tối đa:	Hệ thống 50A thoáng qua: 70a/10s State State: 100A Trạng thái tạm thời: 150A/10S
Tiêu thụ năng lượng:	≤10w
Chịu được điện áp:	1800VDC 1MA 1 phút
Nhiệt độ hoạt động:	Sạc: －10 ～ 75 ℃ Xả: -20 đến 75 ℃ Lưu trữ: -40 đến +75 ℃
Hoạt động độ ẩm:	<90 RH(40℃±2℃)
Chế độ giao tiếp:	RS485/CÓ THỂ/LAN/Bluetooth

192V 50A Lithium Battery BMS for Lifepo4 NMC LTO Energy Storage

High Voltage 60S 192V 50A Lithium Battery BMS

High Voltage Battery Management System for LiFePO4/NMC/LTO Battery Energy Storage

Available Models

Model No	Rated Current	Number of Strings	Number of Rack
RBMS07D30S50A	50A	30S	parallel
RBMS07D30S100A	100A	30S	parallel
RBMS07S30S50A	50A	30S	Single
RBMS07S30S100A	100A	30S	Single
RBMS07D40S50A	50A	40S	parallel
RBMS07D40S100A	100A	40S	parallel
RBMS07S40S50A	50A	40S	Single
RBMS07S40S100A	100A	40S	Single
RBMS07S45S50A	50A	45S	Single
RBMS07S45S100A	100A	45S	Single
RBMS07S75S50A	50A	75S	Single
RBMS07S75S100A	100A	75S	Single
RBMS07D75S50A	50A	75S	parallel
RBMS07D75S100A	100A	75S	parallel

Special design and requirement also available. Please contact us for more details!

Delivery List For One Set

Part Name	Specification	Quantity
host	According to the order model requirements	1pc
Voltage acquisition wiring harness	Standard 1.2m voltage collection line	4pcs (60 strings); 5pcs (75 strings)
Temperature collection harness	Standard 1.2m temperature collection line	4pcs (60 strings); 5pcs (75 strings)
AC plug		1pc
Terminals	8 Pin green	1pc

Specification & Technical Data

Item	Descriptions
Product Name	Integrated BMS (BMS for master and slave all in one)
Model No	RBMS07S60S50A
Startup mode	DC start (optional AC and DC starter)
System operating Voltage	120 - 370 VDC
Number of strings	60S(15S*4) S for Single Rack D for multiple racks in parallel connection
Balance	Passive resistance equalization Balanced current: 100mA ± 10mA(Single cell 3.4V)
Temperature Sampling	Numbers: 12 Battery temperature(4*3) for 60S Sampling accuracy: ± 2℃
Voltage Sampling	Sampling accuracy: single cell ±20mV
SOC%	battery indicator: 25 for 0%-25%, 50 for 25%-50%, 75 for 50%-75%, 100 for 75%-100%
Communication mode	CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional
Display mode	6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication HMI display: optional
Short circuit protection	Support 7.5KA 20ms
Rated Current	50A (100A is optional, according to the customers' need)
Maximum load of power components	50A system transient: 70A/10S Steady-state: 100A transient state: 150A/10S
Alarm level	1 Level
Protection level	2 two levels Level 1 cut off charge / discharge Level 2 micro cut-off switch, system power down
Power Consumption	≤10W
Withstand voltage rating	1800VDC 1mA 1min
Safety certification	Comply with CE certification standards
Operating Temperature	Charging: -10～75℃ Discharging: -20 to 75℃ Storage: -40 to +75℃
Operating humidity range	<90 RH(40℃±2℃)

Product Features

High integrated design with minimal installation space requirements
Long life cycle, >3000 times at 80% DOD
Environmentally friendly with no heavy metals
Maintenance free with no memory effect
Internal BMS with full protection and high voltage protection for greater reliability
Master and Slave all in one integrated solution

Applications

Company Information

We are factory, welcome to visit us!

Certifications

Packaging and Shipping

Frequently Asked Questions

1. Are you a manufacturer or simply a trading company?

We are a manufacturer, and we sincerely welcome you to visit our factory.

2. Can I get some samples?

Yes, a sample order is available for quality checking and market testing.

3. What kind of cells are applicable to this Battery Management System?

LFP, NMC, LTO

4. How about the delivery time?

The delivery time will usually take about 15 to 20 working days accordingly to the specification of your order and quantity.

5. What are your terms of payment?

For sample order or small orders usually will require full payment in advance. For big amount orders can be 30%-50% deposit and the rest payment should be finished before shipping. Advanced T/T is the main payment term, and other payment terms are negotiable.

6. What are your warranty terms?

We offer a 3-year warranty for RBMS, 1-year warranty for PCB.

7. Can you produce BMS with customization requirements?

Yes, based on the order quantity, we can make some small adjustments.

8. How does your factory do regarding quality control?

Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.

9. What Trade Terms are available?

No limitation for trade terms. EXW/FOB/CFR are all available. Moreover, we can send BMS via DHL&UPS&FEDEX quickly and easily. Other shipping ways can also be negotiable and available.

10. Is your BMS easy and convenient to install & test?

This is our the 4th generation high voltage BMS. It's an overall BMS solution, that is to say, you don't need professional technology to install our high-voltage BMS to form a complete battery system.

11. What benefits do customers get?

Our high voltage BMS has complete battery charge and discharge control logic and balance function between batteries. We can also set various parameters of the system according to the actual needs of customers to ensure the stability, reliability and efficient performance of the system.
